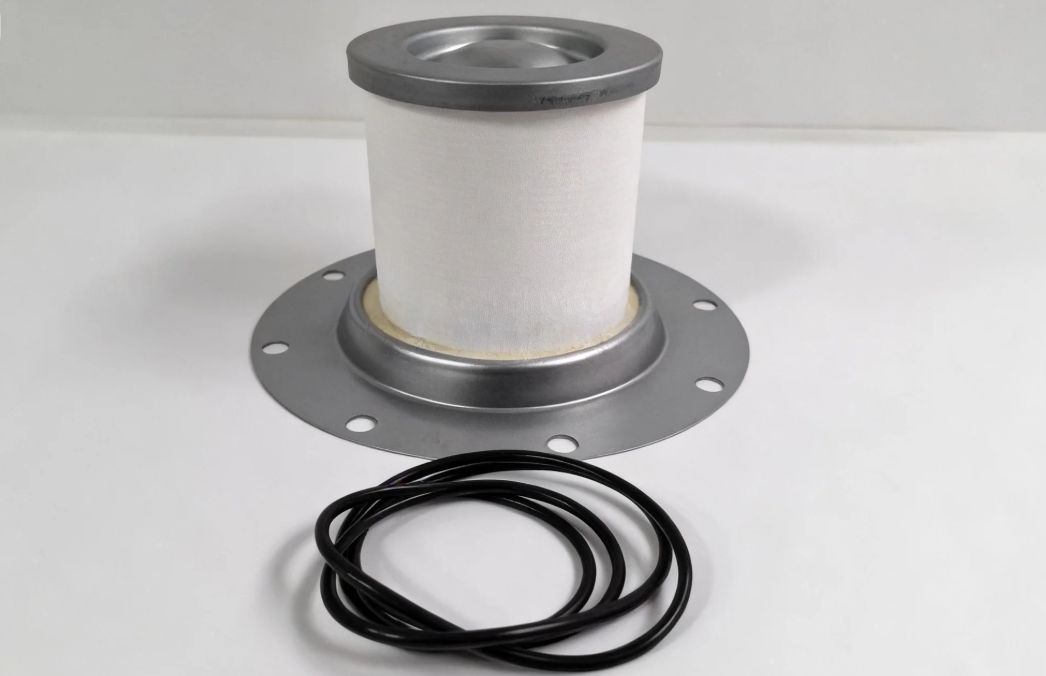

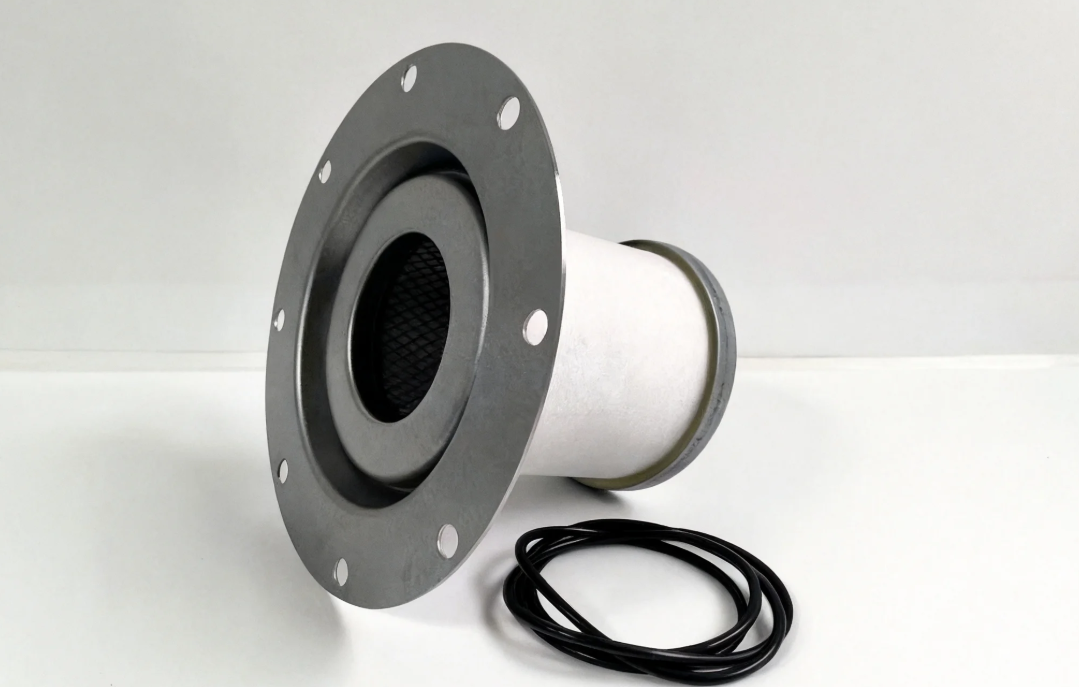

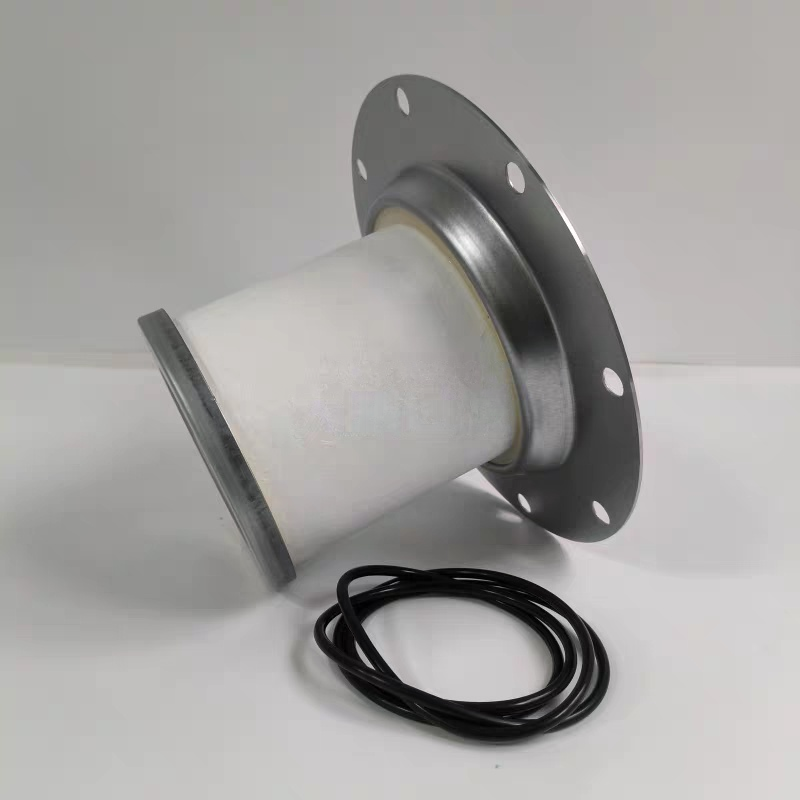

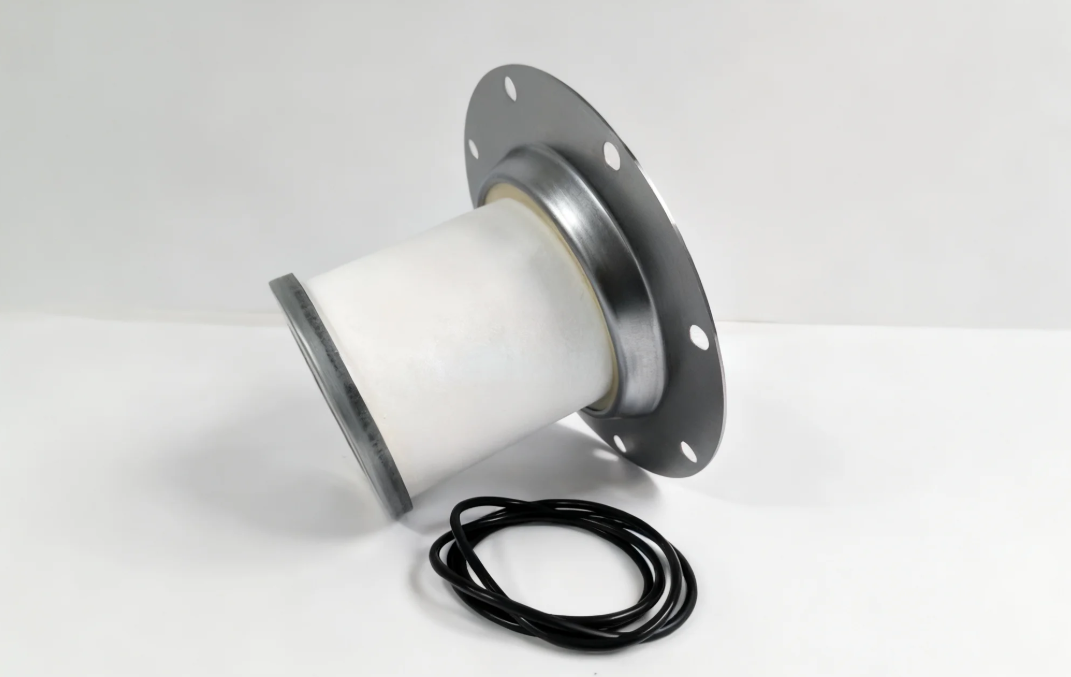

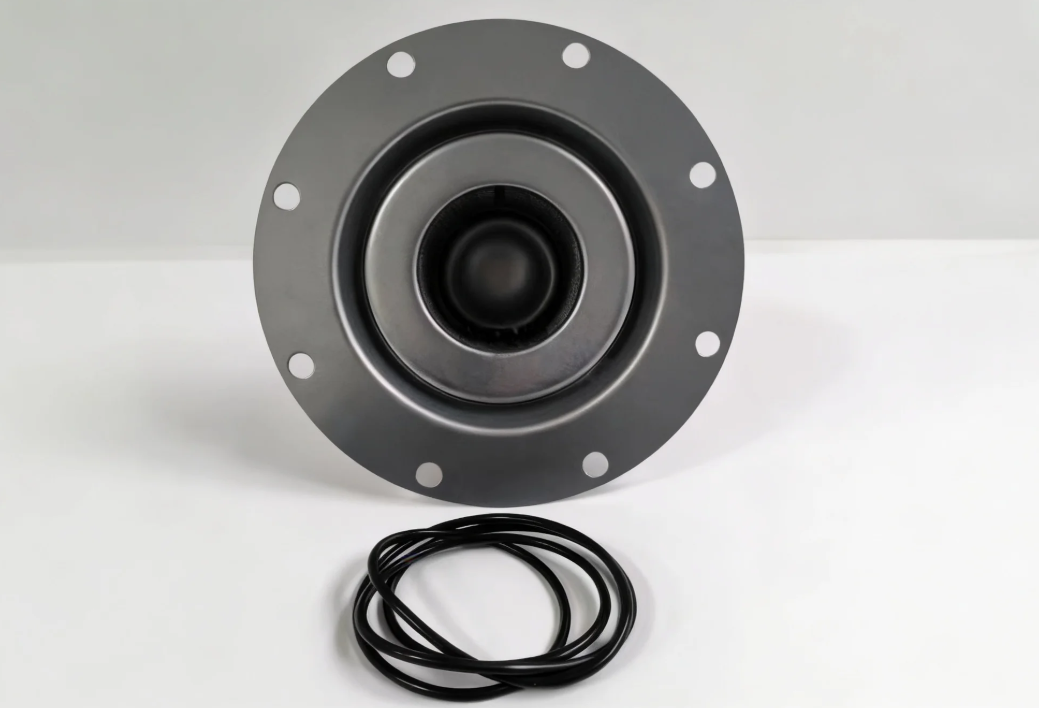

4,000-Hour Durability – The Best Replacement for Atlas Oil Separator 1613839700
Replacement for Atlas Oil Separator
1613839700
Extended 4,000-hour durability · ≤3 mg/m³ oil carryover
| Parameter Code | Physical Meaning | Unit | Standard Reference | Engineering Function |
|---|---|---|---|---|
| φ300 | Nominal Diameter | mm | GB/T 9112 | Diameter of the flange sealing surface; matches pipeline internal diameter for fluid flow continuity |
| 170 | Flange Thickness | mm | HG/T 20592 | Determines structural rigidity and compressive load capacity for gasket sealing |
| 109 | Bore Diameter | mm | GB/T 9112 | Net internal flow passage; affects fluid velocity and pressure drop |
| 177 | Pitch Circle Diameter (PCD) | mm | HG/T 20592 | Diameter of the circle on which the 8 bolt holes are evenly spaced; ensures alignment with mating flange |
| (8ø16) | Number and Diameter of Bolt Holes | pcs / mm | GB/T 5782 | Eight M16 bolt holes uniformly distributed to ensure even clamping force and seal integrity |
Designed for critical compressed air systems
This replacement oil separator (part #1613839700) is manufactured to meet or exceed Atlas Copco original specifications. Using high-efficiency borosilicate microfiber media and specialized drainage layers, it delivers superior coalescing performance. The result: consistently low residual oil content, cleaner condensate, and extended lubricant life.
Rated 4,000 operating hours under normal duty cycles — ideal for manufacturing, automotive, pharmaceutical, and food-grade compressed air networks.
Our promise: We stand behind every unit. If you experience less than 2,500 hours of effective service life, simply contact us for a full refund.
Key features & benefits
- ✓ Extended durability – Proven 4,000h service life reduces replacement frequency by up to 30% vs standard separators
- ✓ Perfect compatibility – Direct replacement for Atlas Copco oil separator element 1613839700 (fits GA / GX / XA series)
- ✓ Sturdy construction – Corrosion-resistant end caps & high collapse pressure rating
- ✓ Energy efficient – Low pressure drop helps reduce compressor power consumption
- ✓ 2500-hour minimum guarantee – return if lifespan under 2500 hours
Engineered confidence — beyond specifications
Proven in harsh environments
Tested in continuous industrial cycles: high humidity, fluctuating loads, and dusty conditions. Consistently delivers 4,000h+ in real-world rotary screw compressors.
Tool-free installation ready
Precision-molded gaskets and exact dimensional match to OE separator 1613839700. No special tools or modifications — drop-in replacement saves labor time.
Smart inventory & support
Real-time stock for urgent needs. Technical team provides lifecycle guidance, pressure drop tracking, and best practices to maximize separator life.
